84148090

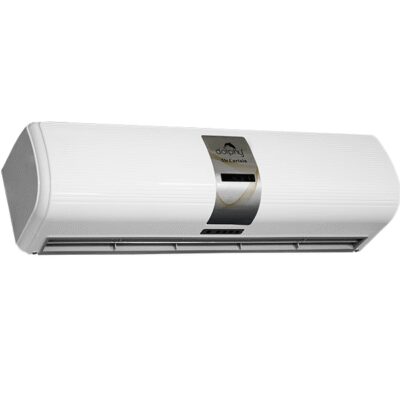

ABS Body With Remote
ABS Body With Remote
High Velocity Variable Speed Air Curtain with heavy duty motors for 24X7 operations, ABS Body with Stainless Steel Back Plate for Commercial Application.
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Air Flow Cub.m/h |
1013 |
| Air Volume (CMH) |
1100 CFM ,1380 CFM ,825 CFM |
| Chassis |
ABS Plastic |
| Dimensions (mm) |
1200 x 230 x 220 ,1500 x 230 x 220 ,900 x 230 x 220 |
| Effective Height |
Upto 10 feet |
| Fan Type |
Centrifugal |
| Flow Type |
Non – Recirculating |
| Max Velocity @ Nozzle |
21m/s (High) / 16m/s (Low) |
| MOC Blower |
Virgin Plastic |
| MOC (Main & Base Plates) |
Base Plate are constructed in Satainless Steel |
| MOC Motor Shell |
Mettle Coated |
| MOC (Suction Grills) |
Plastic |
| MOC Winding |
Copper |
| Model No. |
DACN0001 ,DACN0002 ,DACN0003 |
| Nos. of Blowers |
03 ,04 ,05 |
| Nos. of Motors @ Wattage |
2 @ 410W ,2 @ 560W ,2 @ 700W |
| Operation Control |
Remote ,Sensor |
| Outer Body (Visual Look) |
ABS Plastic |
| RPM |
2700 Max / 2100Min |
| Size |
3 Feet ,4 Feet ,5 Feet |
| Socket |
Type D |
| Sound Level (db 'A' Scale) |
47 – 52 db ,49 – 54 db ,50 – 55 db |
| Speed Variation |
2 Speed Operation, (High / Low) |
| Suction Side |
Top |
| Voltage |
220 V, Single Phase, 50Hz |
| Warranty Part |
1 Year ,2 Year ,3 Year |
| Wattage |
410W ,560W ,700W |
| Weight |
15 KG. ,19 KG. ,26 KG. |
| Remote |
Yes |
| Inbuilt Sensor |
Yes |
| Brand |
Dolphy |
| HSN Code |
84148090 |
Description
ABS Body With Remote
What Is An Air Curtain (Air Door) ?
An Air Curtain (Air Door) is an energy saving product that is used in commercial and residential buildings to prevent insects, dust and a wide range of other things from entering certain space. Air Curtain (Air Door)Â also ensure that the air in the building remain conditioned while also ensuring that spaces near the doors remain usable.
It is available in two main types:
1. Circulating Air Curtain (Air Door).
2. Non-circulating Air Curtain (Air Door).
Why Use Air Curtain (Air Door) ?
Incredible benefits can be achieved by using an Air Curtain (Air Door). It controls air transfer, thus saving energy, enhances smooth and faster traffic flow, enhances the usability of spaces near doors and guaranteeing comfort. Moreover, an Air Curtain (Air Door) gets rid of fog and ice in cold areas and improves safety in places near doors. Inhibits Mosquitoes, Flies and Dust.
How an Air Curtain (Air Door) Work?
Air enters the Air Curtain (Air Door) through the fan housing before being accelerated by the fan. This fast-moving air gets into the plenum which ensures that the air is evenly distributed the entire length of the discharge nozzle. The aero foil design of Blower with vortex shaped housing in combination with the nozzle ensure the uniformity of the air stream and a minimum turbulence. The air which is discharged via the nozzle goes to the floor as a jet stream and about 80 percent of this gets to the side where the Air Curtain (Air Door) is installed while 20 percent flows towards the opposite direction.
CONDITIONS OF USE:
Please DO NOT install the unit under following conditions:
1. Do not operate ambient temperature over 50 c or below -10 c.
2. A relative humidity over 95 % at room temperature and steamy area.
3. Contains of oily smoke.
4. Materials or gases may cause explosion.
5. Nearly corrosive gases.
6. Locate in where may be sprinkle with water.
