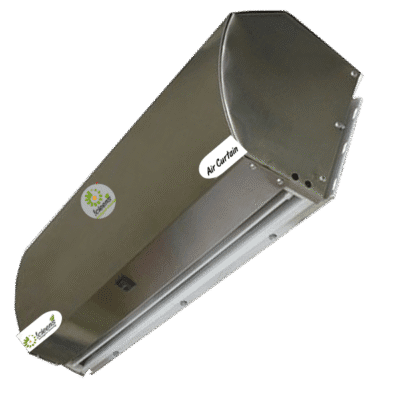

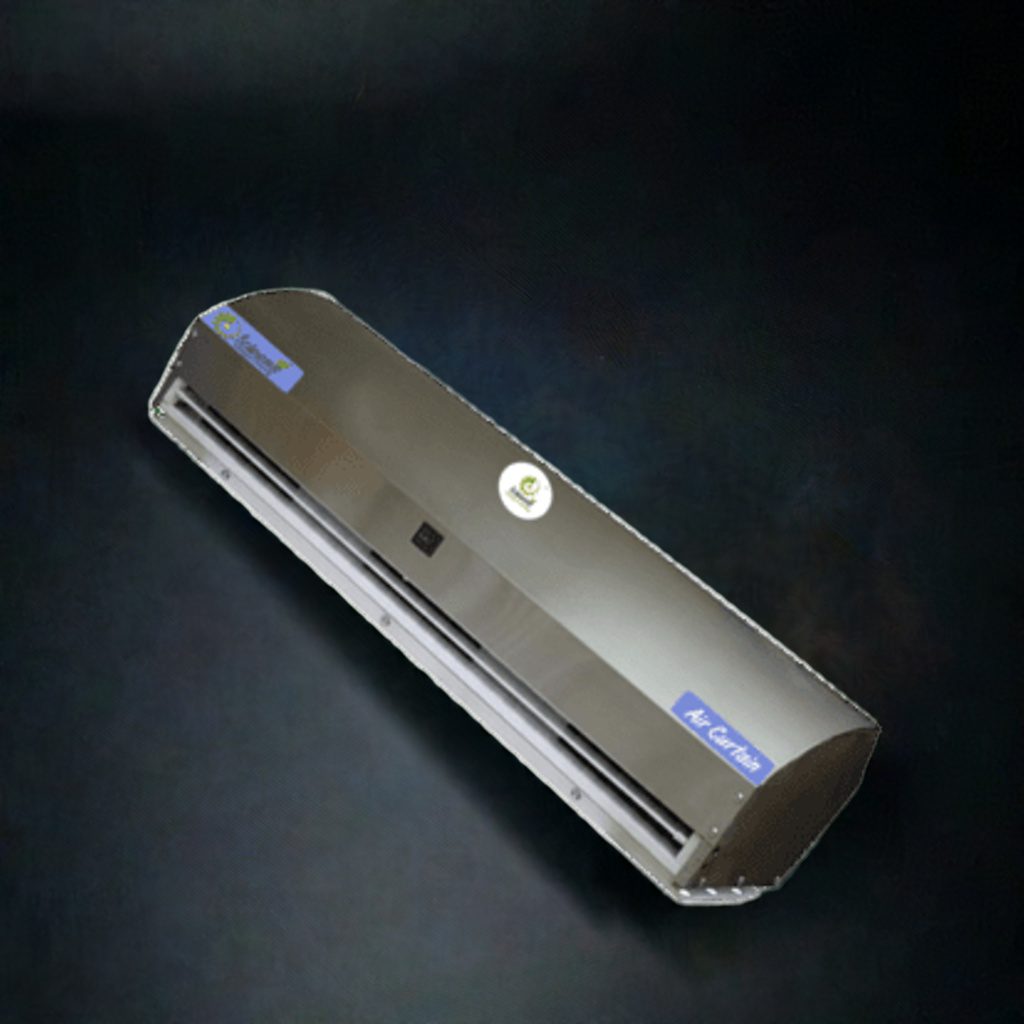

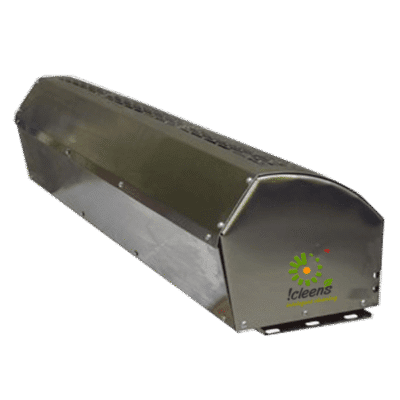

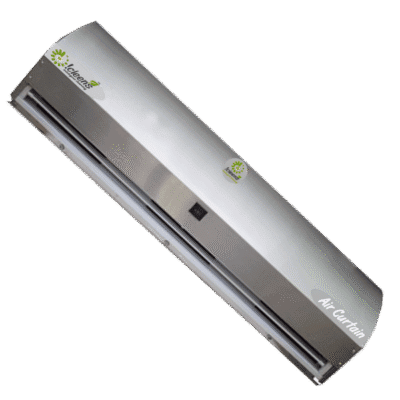

S.S. BODY Air Curtains
MRP: Price range: Rs. 14,450.00 through Rs. 21,500.00
S.S. BODY Air Curtains
High Velocity 2 Speed Air Curtain with heavy duty motors for 24X7 operations, Plain Stainless Steel Body with Stainless Steel (Grade 304) Chassis for Commercial Application
| Weight | 16 kg |
|---|---|
| Dimensions | 90 × 21 × 24 cm |
| Aesthetic Look | Plain Curved Surface Top Suction |
| Air Flow Cub.m/h | 1013 |
| Air Volume (CMH) | Air Volume : (H) 1000 CFM ; (L) 725 CFM |
| Certifications | ISO 9001:2015, CE |
| Chassis | Stainless Steel – SS304 |
| Effective Height | Upto 10 feet |
| Fan Type | Centrifugal |
| Flow Type | Non – Recirculating |
| Max Velocity @ Nozzle | 21m/s (High) / 16m/s (Low) |
| MOC Blower | Virgin Plastic |
| MOC (Main & Base Plates) | Main and Base Plates are constructed in Stainless steel grade 304 |
| MOC Motor Shell | Aluminium |
| MOC (Suction Grills) | Stainless Steel 304 |
| MOC Winding | Copper |
| Model No. | ICSS1200, ICSS1500, ICSS900 |
| Nos. of Blowers | 03, 04, 05 |
| Nos. of Motors @ Wattage | 1@80W + 1@120W, 1@80W + 2@120W, 2@120W |
| Operation Control | Dual Speed Switch |
| Outer Body (Visual Look) | Stainless Steel 304 |
| RPM | 2800 |
| Size | 3 Feet, 4 Feet, 5 Feet |
| Socket | Type D |
| Sound Level (db 'A' Scale) | 62, 68, 69 |
| Speed Variation | 2 Speed Operation, (High / Low) |
| Suction Side | Front, Top |
| Voltage | 220 V, Single Phase, 50Hz |
| Warranty Part | 01 Year as per company norms., Extended Warranty Option Available for 2 and 3 years for detail contact us. |
| Wattage | 200 W, 240 W, 320 W |
| Brand | ICLEENS |
You must be logged in to post a review.
Description
What Is An Air Curtain (Air Door) ?
An Air Curtain (Air Door) is an energy saving product that is used in commercial and residential buildings to prevent insects, dust and a wide range of other things from entering certain space. Air Curtain (Air Door) also ensure that the air in the building remain conditioned while also ensuring that spaces near the doors remain usable.
It is available in two main types:
1. Circulating Air Curtain (Air Door).
2. Non-circulating Air Curtain (Air Door).
Why Use Air Curtain (Air Door) ?
Incredible benefits can be achieved by using an Air Curtain (Air Door). It controls air transfer, thus saving energy, enhances smooth and faster traffic flow, enhances the usability of spaces near doors and guaranteeing comfort. Moreover, an Air Curtain (Air Door) gets rid of fog and ice in cold areas and improves safety in places near doors. Inhibits Mosquitoes, Flies and Dust.
How an Air Curtain (Air Door) Work?
Air enters the Air Curtain (Air Door) through the fan housing before being accelerated by the fan. This fast-moving air gets into the plenum which ensures that the air is evenly distributed the entire length of the discharge nozzle. The aero foil design of Blower with vortex shaped housing in combination with the nozzle ensure the uniformity of the air stream and a minimum turbulence. The air which is discharged via the nozzle goes to the floor as a jet stream and about 80 percent of this gets to the side where the Air Curtain (Air Door) is installed while 20 percent flows towards the opposite direction.
